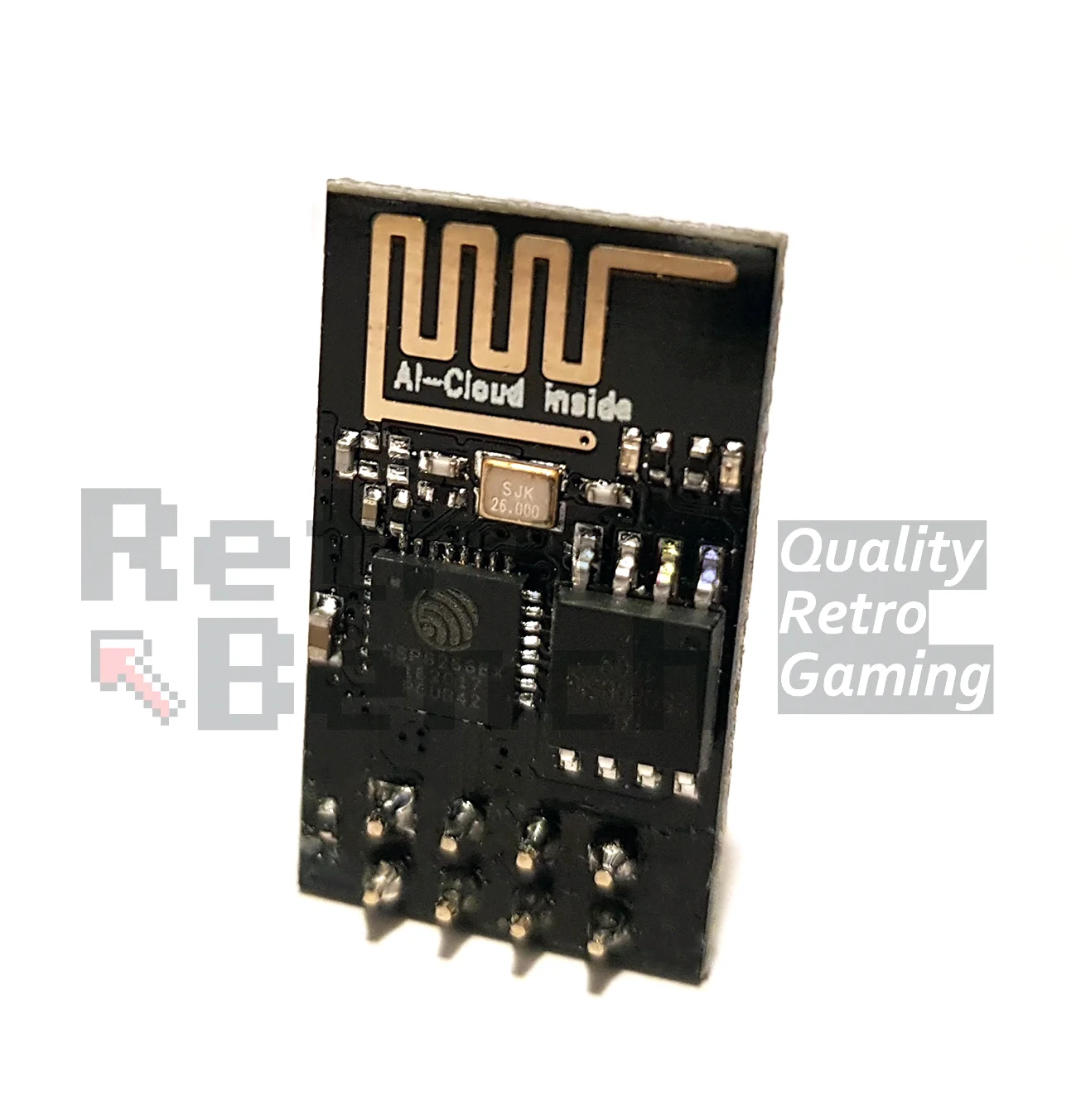

Spectrum NEXT WiFi Module (ESP8266 ESP-01)

3.99

Spectrum NEXT WiFi Module (ESP8266 ESP-01)

3.99

WiFi module (ESP8266 ESP-01) compatible with the ZX Spectrum NEXT. Requires NO firmware updates, just plug-in & go! New UK Stock!

More Info

Quantity:
Add To Cart

WiFi module (ESP8266 ESP-01) compatible with the ZX Spectrum NEXT. Requires NO firmware updates, just plug-in & go! New UK Stock!

  • Wireless standard: 802.11 b / g / n
  • Frequency range: 2.4GHz~2.5GHz(2400M ~ 2483.5M)
  • Data interface: UART / HSPI / I2C / I2S / IR Remote Contorl / GPIO / PWM
  • Operating voltage: 3.0 ~ 3.6v (Suggest 3.3v)
  • Working current: average 80mA
  • Operating temperature: - 40 degrees to 125 degrees
  • Storage temperature: room temperature
  • Package size: 14.3mm * 24.8mm * 3mm
  • External interface: N / A
  • Wireless network mode: station / softAP / SoftAP + station
  • Security mechanisms: WPA / WPA2
  • Encryption type: WEP / TKIP / AES
  • Upgrade firmware: local serial port burn, cloud upgrade, host download burn (future firmware upgrades possible burning directly from Spectrum Next)
  • Network protocols: IPV4, TCP / UDP / HTTP / FTP
  • User Configuration: AT + instruction set
